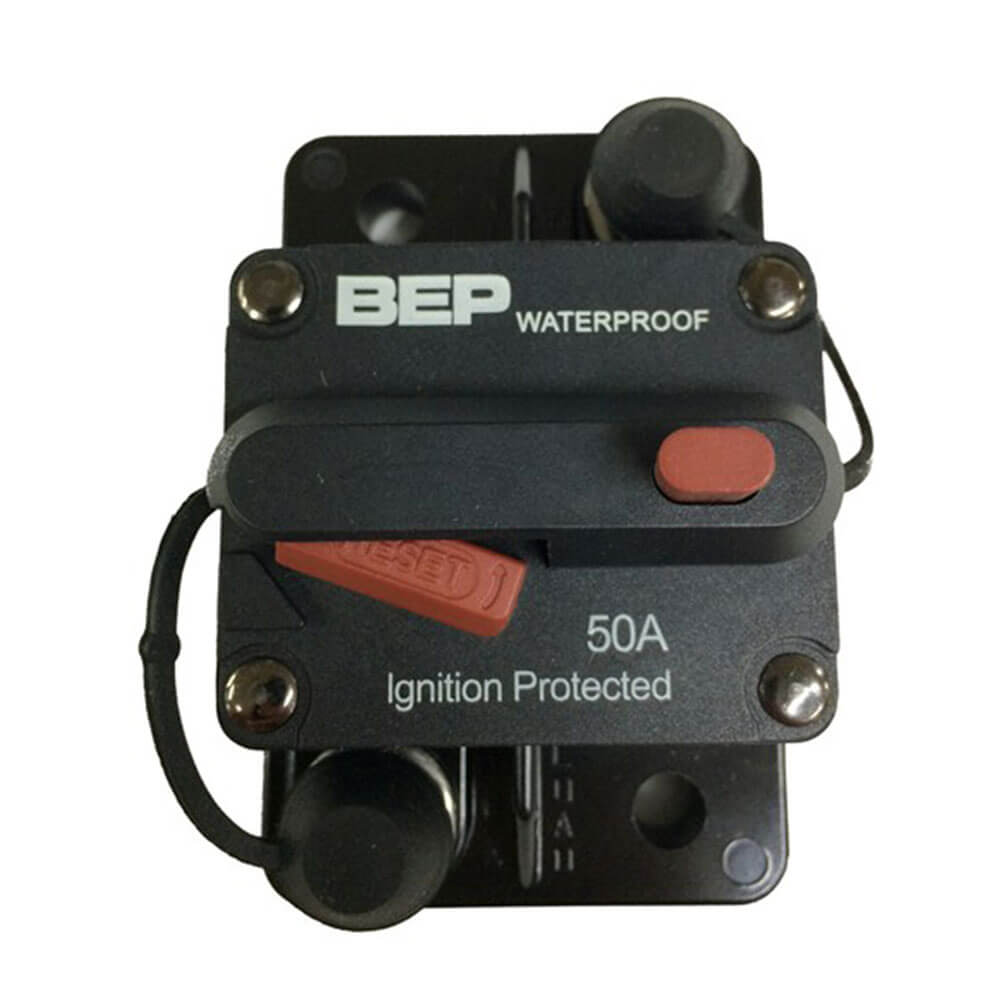

BEP Waterproof Circuit Breaker 50A 42VDC Panel Mount

Heavy-duty single pole thermal type breakers are ideal for auxiliary and accessory circuits, trucks, buses, RVs and marine applications, battery chargers and DC audio systems. Sealed for engine compartment and bilge area applications. Stud insulators are provided on covered units with F (Surface Mount) bases; tin plated copper studs, brass rivets and stainless steel locking nuts.

Product Specifications

• Ratings: 50A; 42V DC, 3000A interrupt capacity
• Operating Temperature: -32 deg C to 82 deg C
• Storage Temperature: -34 deg C to 149 deg C
• Housing: Thermoset plastic; UL rated 94VO; 155 deg C
• Mounting: Surface
• Terminal Stud Torque: 5.6Nm max
• Indicator: have a unique reset mechanism providing visible indication of tripped condition
• Ingress Protection Rating: IP67
• Suitable for Minn Kota Motors
