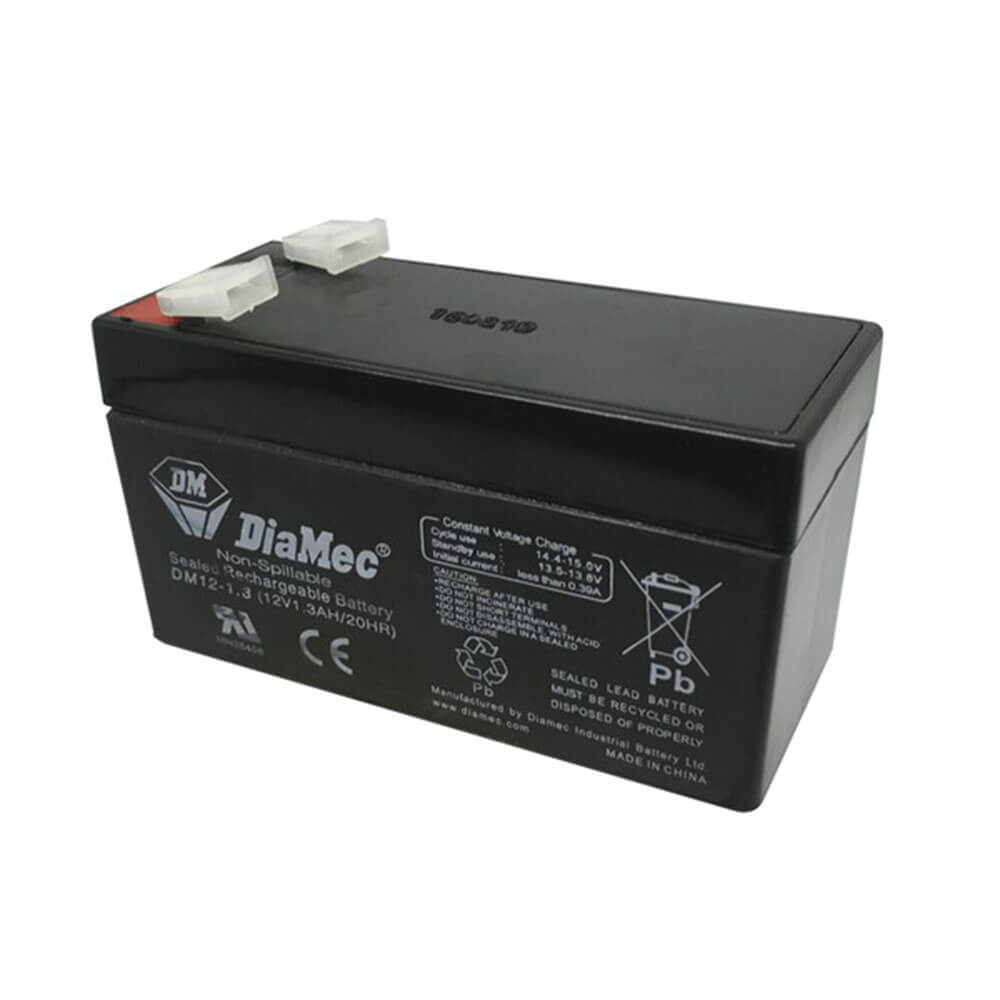

Sealed Lead Acid Battery (12V 1.3Ah)

Features:

• Charge current 130mA for 10-14 hours
• Discharge current 20 hour rate 65mA
• Int Resistance: Fully charged (20 Degrees C,68 Degrees F) 110mOhm
• Max Discharge Current (5 sec):40A
• Constant Voltage Charge: Initial charging current < 0.39A

Cycle:

• Voltage 14.4V (approx.) 15.0V @ 20 Degrees C (68 Degrees F)
• Temp Coefficient: - 30mV/ Degrees C

Standby:

• Voltage 13.5V (approx.) 13.8V @ 20 Degrees C (68 Degrees F)
• Temp Coefficient: - 20mV/ Degrees C

Product Specifications

• DC Voltage : 12.0V
• Length : 97.0mm
• Height : 57.0mm
• Depth : 43.0mm
• Standard Recharge Current : 130.0A
• Battery quantity : 1.0pc
• Recharging Time : 20.0hr
• Battery Chemical Composition : Sealed Lead Acid (SLA)
• Battery usage : Rechargeable
• Amp Hour Rating : 1.3Ah
• 20 Hour Capacity : 1.3Ah
• 10 Hour Capacity : 1.2Ah
• 5 Hour Capacity : 1.1Ah
• 1 Hour Capacity : 0.73Ah
• Internal Resistance : 110.0Megaohm
• Connection Type : Spade Terminals
